Metal LB

Quick examples on configuring this operator. I’m assuming the operator is installed.

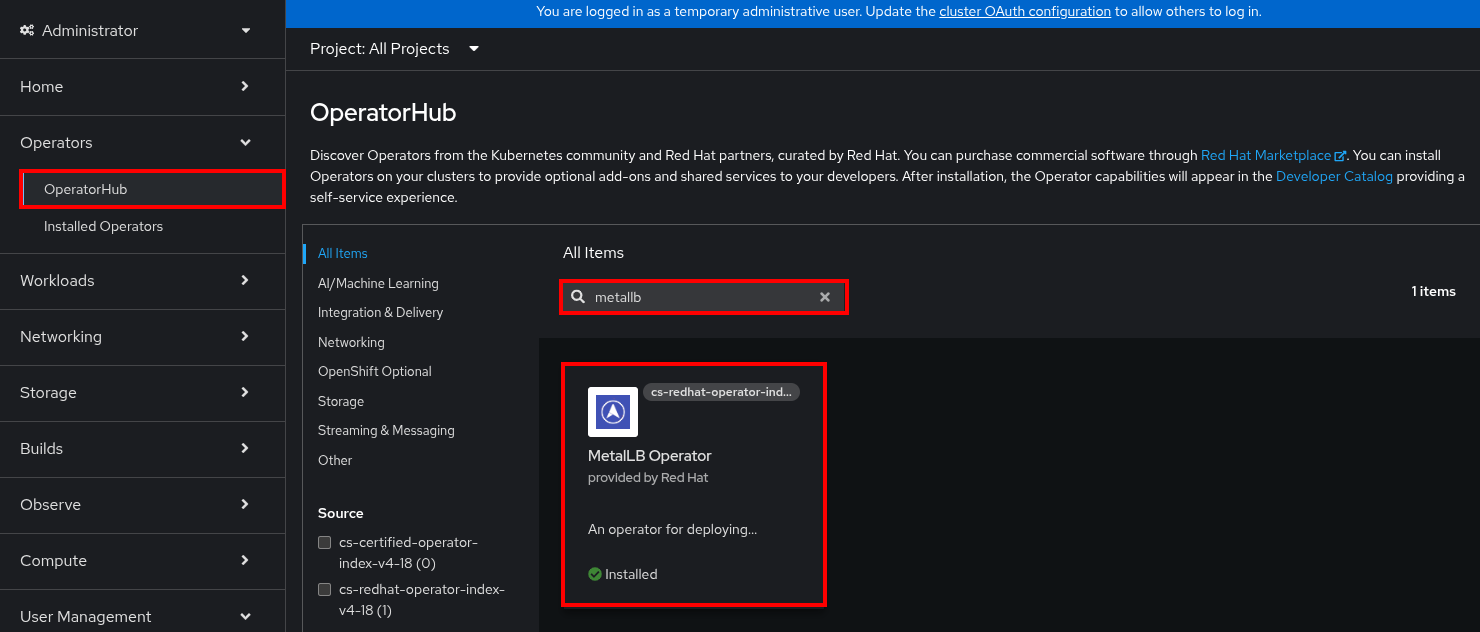

From the OCP Console select Operators ‣ OperatorHub. In the search box type “metallb”.

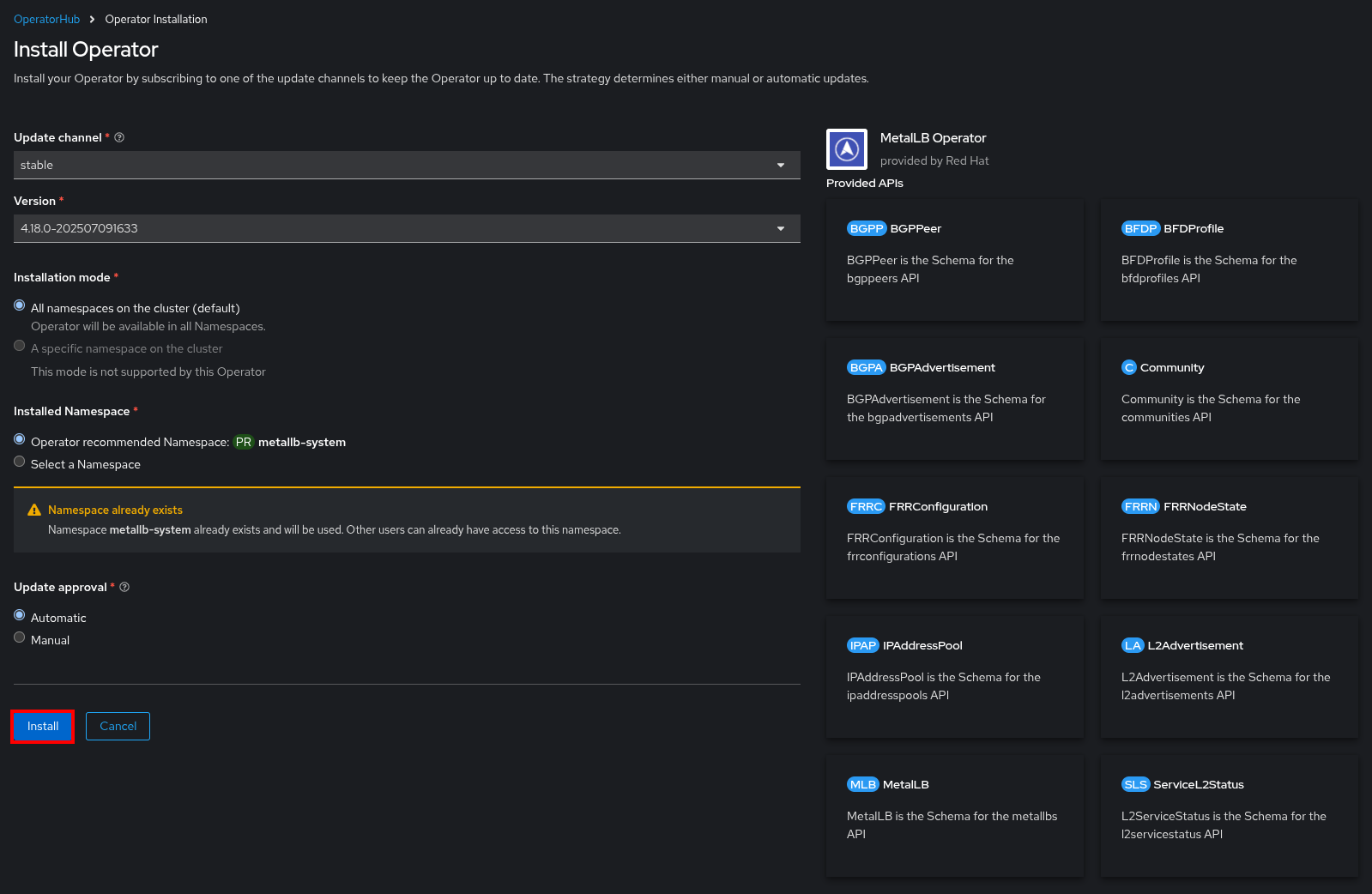

Click Install. Leave defaults and Click Install again.
After operator installation completes, click “View Operator”.

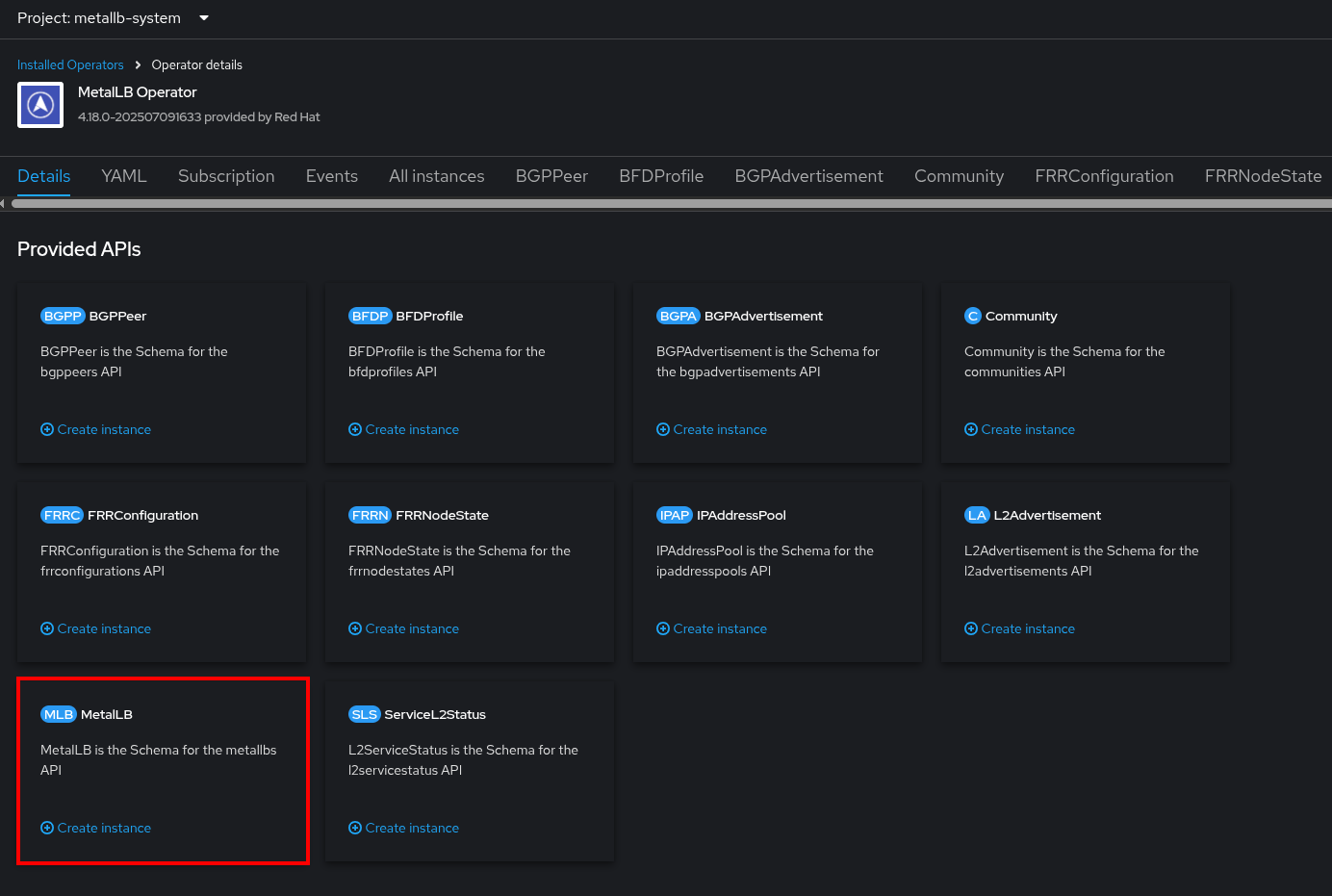

Click “Create instance” to create the Metal LB instance.

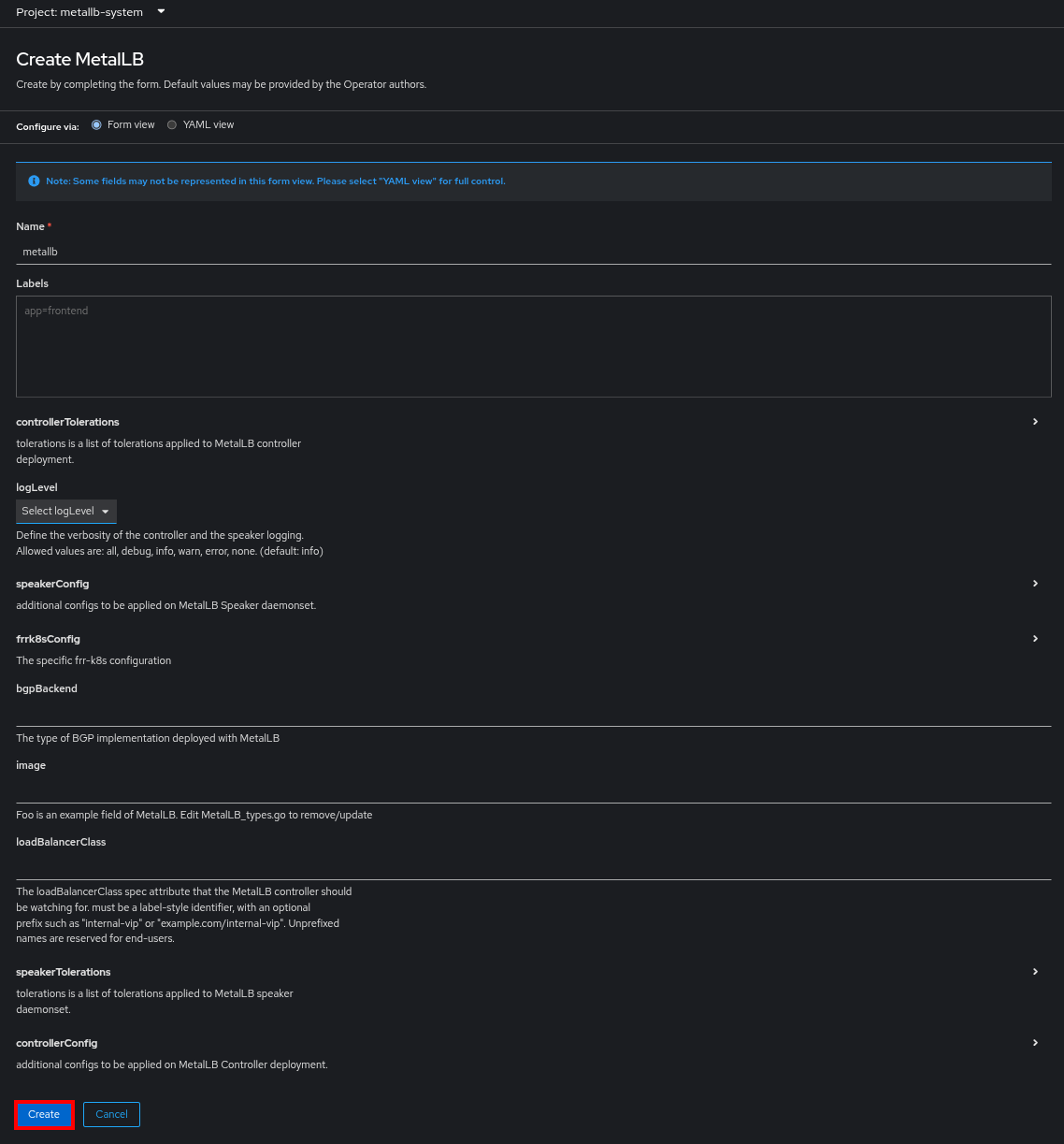

Accept the defaults and click “Create” at the bottom of the page.

L2

Tip

To expose the VIP with a service see: Quick App Deployment

There you’ll find how to deploy a generic httpd service and expose a LoadBalancer Service.

Important

You need a LoadBalancer Service for this to work.

Create the IP Address Pool

cat << EOF | oc create -f -
apiVersion: metallb.io/v1beta1
kind: IPAddressPool
metadata:
  name: ipaddrpool-v132
  namespace: metallb-system
spec:
  addresses:
  - 192.168.132.225-192.168.132.229
EOF

Create the L2 Advertisement

cat << EOF | oc create -f -
kind: L2Advertisement
apiVersion: metallb.io/v1beta1
metadata:
  name: l2-adv-v132
  namespace: metallb-system
spec:
  ipAddressPools:
  - ipaddrpool-v132
EOF

BGP

See also

Edge Router 4 - BGP

Create the IP Address Pool

cat << EOF | oc create -f -
apiVersion: metallb.io/v1beta1
kind: IPAddressPool
metadata:
  name: ipaddrpool-v245
  namespace: metallb-system
spec:
  addresses:
  - 192.168.245.201-192.168.245.225
EOF

Create the BGP Peer

cat << EOF | oc create -f -
kind: BGPPeer
apiVersion: metallb.io/v1beta2
metadata:
  name: bgp-peer-v245
  namespace: metallb-system
spec:
  myASN: 64512
  peerASN: 64512
  peerAddress: 192.168.132.1
EOF

Creat the BGP Advertisement

cat << EOF | oc create -f -
kind: BGPAdvertisement
apiVersion: metallb.io/v1beta1
metadata:
  name: bgp-adv-v245
  namespace: metallb-system
spec:
  ipAddressPools:
  - ipaddrpool-v245
  peers:
  - bgp-peer-v245
EOF
