Image Registry Operator

This operator is installed by default with every OpenShift cluster. For it to work you simply need to allocate storage (PV) and a PVC. This can be accomplished with the local storage operator and or ODF or External Storage (NFS).

See also

ODF Operator Quick Start

Local Storage Operator Quick Start

External Storage (NFS)

Configure the storage claim

1. Change project

   oc project openshift-image-registry


2. Set image registry to Managed by patching the config

   oc patch configs.imageregistry.operator.openshift.io cluster --type merge --patch '{"spec":{"managementState":"Managed"}}'


3. Add the PVC by editing the image registry config

   oc patch configs.imageregistry.operator.openshift.io cluster --type merge --patch '{"spec":{"storage":{"pvc":{"claim":""}}}}'

   # Replace the "storage: {}" line with the following
   #
   # spec:
   #   storage:
   #     pvc:
   #       claim:


4. Check pvc STATUS = “Bound”. This step may fail if not using a storage class with RWX (ReadWriteMany) access mode.

   oc get pvc


5. If the pvc is “Pending” due to the default storage class, the pvc will need to be modified. The “accessModes” must match. Block type storage uses RWO (ReadWriteOnce).

   Important

   When using the Local Storage Operator, NOT ODF. This step will need to be taken. The pvc needs to match the pv’s “storageClassName”, “accessModes”, and “storage”.

   1. Copy the current pvc to yaml file.

      oc get -n openshift-image-registry pvc image-registry-storage -o yaml > image-registry-storage.yaml


   2. Delete the pvc.

      oc delete -n openshift-image-registry pvc image-registry-storage


   3. Edit the previously saved file “image-registry-storage.yaml”.

      apiVersion: v1
      kind: PersistentVolumeClaim
      metadata:
        annotations:
          imageregistry.openshift.io: "true"
          volume.beta.kubernetes.io/storage-provisioner: openshift-storage.rbd.csi.ceph.com
          volume.kubernetes.io/storage-provisioner: openshift-storage.rbd.csi.ceph.com
        finalizers:
        - kubernetes.io/pvc-protection
        name: image-registry-storage
        namespace: openshift-image-registry
      spec:
        accessModes:
        - ReadWriteOnce
        resources:
          requests:
            storage: 100Gi
        storageClassName: lso-fs
        volumeMode: Filesystem


   4. Create the new pvc:

      oc create -f image-registry-storage.yaml


Set the default route

1. Set the defaultRoute to true

   oc patch configs.imageregistry.operator.openshift.io/cluster --type=merge --patch '{"spec":{"defaultRoute":true}}'


2. Get the default registry route

   REGROUTE=$(oc get route default-route -n openshift-image-registry --template='{{ .spec.host }}')


3. Get the cluster’s default certificate and add to the clients local ca-trust

   oc get secret -n openshift-ingress router-certs-default -o go-template='{{index .data "tls.crt"}}' | \
     base64 -d | sudo tee /etc/pki/ca-trust/source/anchors/${REGROUTE}.crt  > /dev/null


4. Update the clients local ca-trust

   sudo update-ca-trust


5. Log in with podman using the default route. You’ll need to login to your cluster with “kubeadmin” first in order to receive a user token.

   oc login -u kubeadmin

   podman login -u kubeadmin -p $(oc whoami -t) $REGROUTE


   Should see the following output:

   Login Succeeded!


   Note

   If an error is returned as well, it’s because “oc whoami -t” does not have a token. Try logging into the cluster first.

Upload Image

1. Log in into OpenShift API with user that has appropriate permissions.

   oc login -u kubeadmin


2. Log into registry via external route.

   REGROUTE=$(oc get route default-route -n openshift-image-registry --template='{{ .spec.host }}')

   podman login -u kubeadmin -p $(oc whoami -t) $REGROUTE


3. Upload image to local repo

   podman pull mirror.lab.local:8443/f5devcentral/f5-hello-world


   Tip

   To import a tarball

   podman image load -i <tarball>


4. Tag local image for OCP registry

   Attention

   The path must start with the project name. In this example I’m using project “default”.

   podman tag mirror.lab.local:8443/f5devcentral/f5-hello-world:latest $REGROUTE/default/f5-hello-world:latest


   Tip

   Tag multiple images

   for image in $(podman images --format "{{.Repository}}:{{.Tag}}" | \
     grep localhost | sed 's/^localhost\///'); \
     do podman tag $image $REGROUTE/default/$image; done


   Remove new tags

   for image in $(podman images --format "{{.Repository}}:{{.Tag}}" | \
     grep -v localhost); do podman rmi $image; done


5. Push local image to OCP registry

   Attention

   The project must exist in order to upload the image. In this example I’m using project “default”.

   podman push $REGROUTE/default/f5-hello-world:latest


   Tip

   Push multiple images

   for image in $(podman images --format "{{.Repository}}:{{.Tag}}" | \
     grep -v localhost); do podman push $image; done

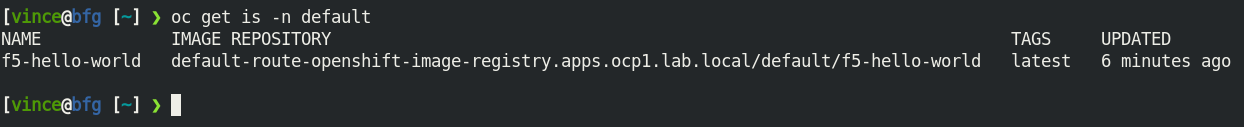

6. View image on OCP registry

   oc get is -n default




7. Access the image/registry directly from a cluster node

   ssh core@host11

   oc login -u kubeadmin https://api-int.ocp1.lab.local:6443

   podman login -u kubeadmin -p $(oc whoami -t) image-registry.openshift-image-registry.svc:5000

   podman pull image-registry.openshift-image-registry.svc:5000/default/f5-hello-world


8. Use the internal name for deployments

   spec:
     containers:
     - env:
       - name: service_name
         value: f5-hello-world-web
       #image: mirror.lab.local:8443/f5devcentral/f5-hello-world:latest
       #image: default-route-openshift-image-registry.apps.ocp1.lab.local/default/f5-hello-world:latest
       image: image-registry.openshift-image-registry.svc:5000/default/f5-hello-world:latest
       imagePullPolicy: Always
       name: f5-hello-world-web
